Soil compaction can be caused for many years by heavy harvesting machines, compacted plough soles and heavy trailers with too high tyre pressure.
As a result, soil life will be strongly restricted.

The subsoiler breaks up and loosens the soil to supply oxygen and increase crop yields for the long term.
The subsoiler's V-frame, the vertical blades and the optimal angle of the points also make the implement easy to pull.
Height-adjustable intermediate tines mix the humus layer on the surface in the same pass.

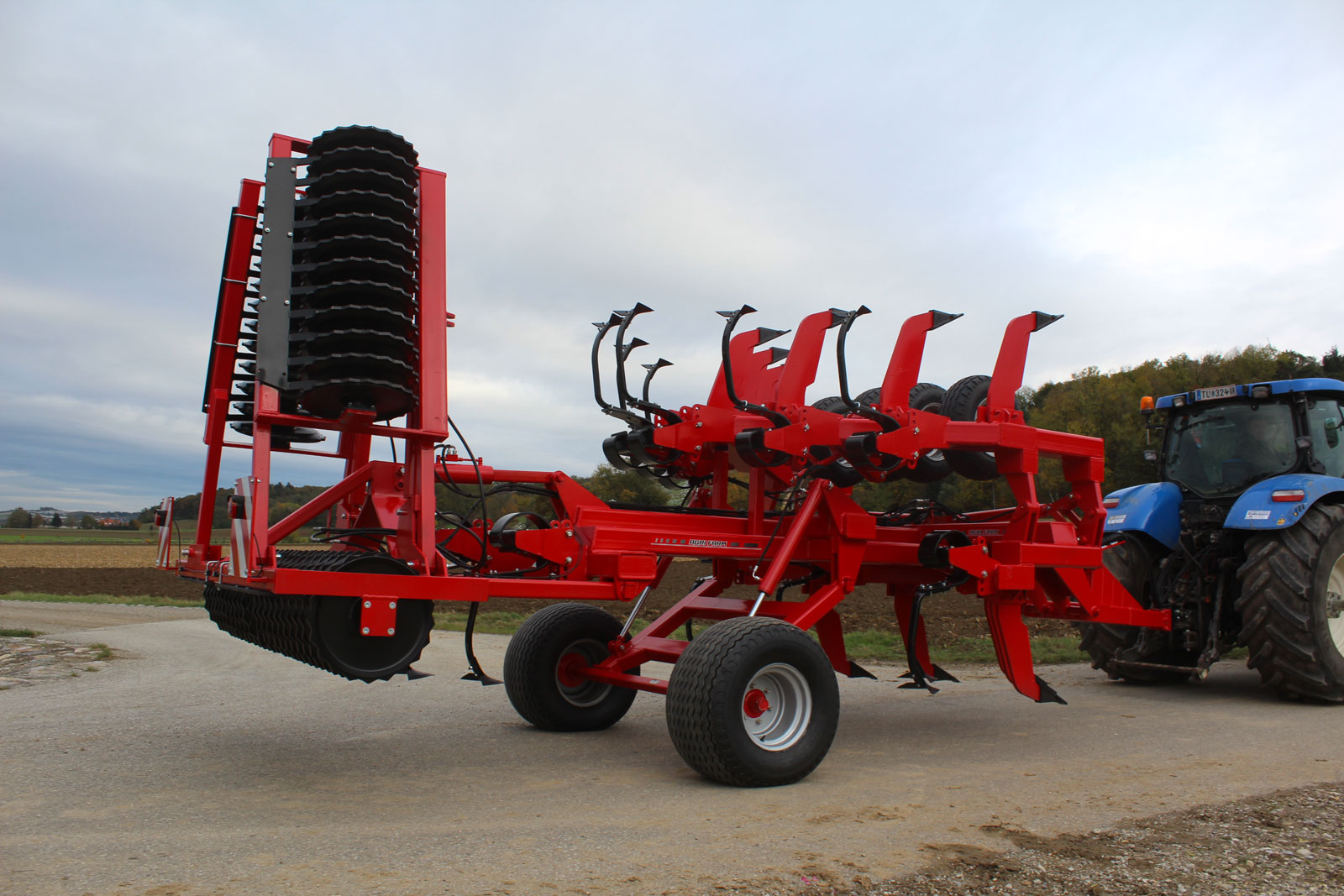

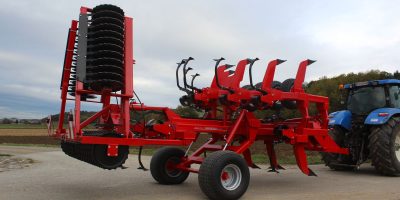

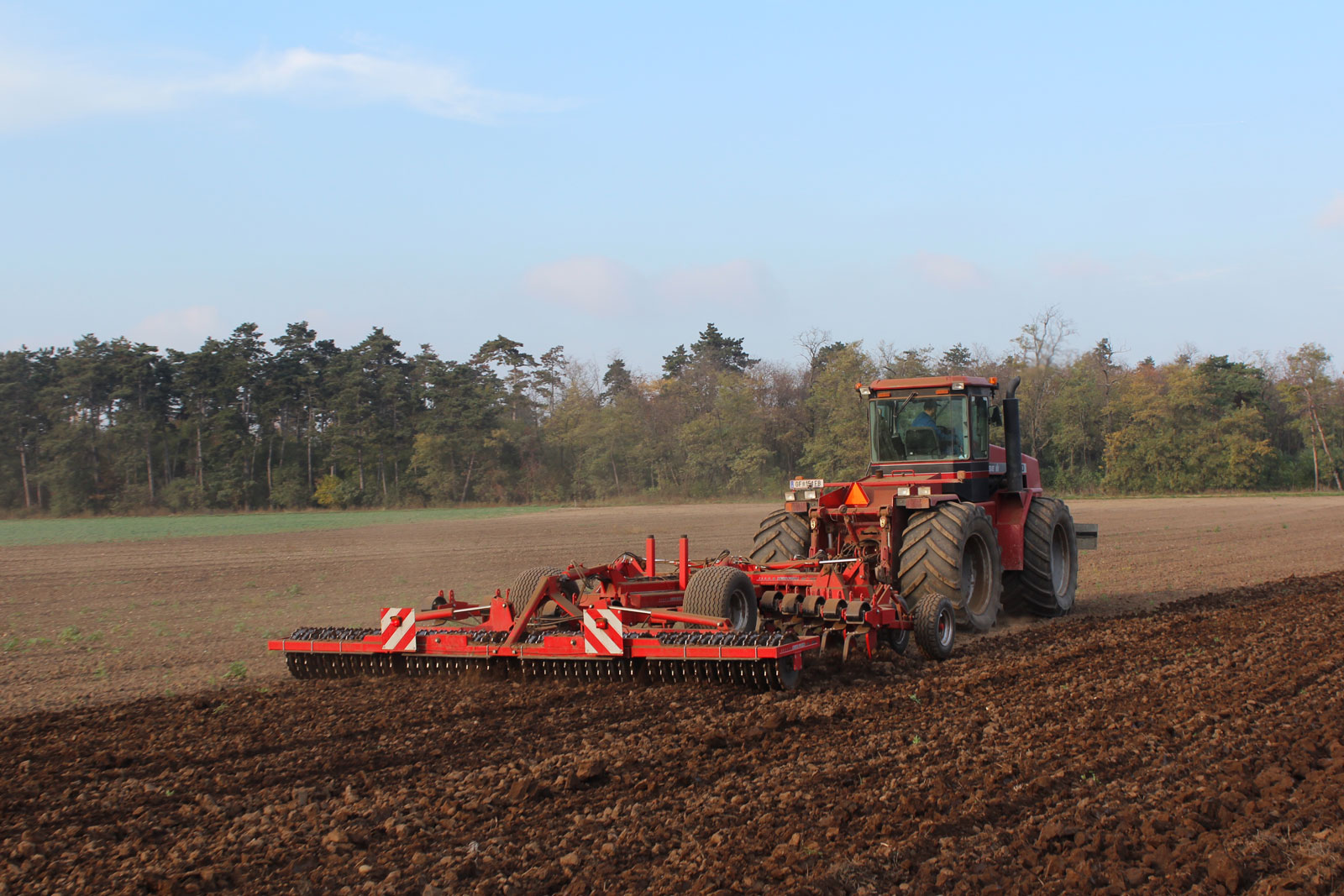

With the chassis the trailed subsoiler can be transported very gently.



  • loosening and breaking up compacted soil
  • in summer and autumn, especially after the harvest of vegetables, sugar beet and maize
  • working depth of 25 – 60cm


  • extremely easy to pull due to the V-frame
  • subsoiler tines break up the subsoil to a depth of 60 cm
  • vertical blades prevent lifting of barren soil
  • points promote the rise of humidity to the surface
  • simultaneous mixing of the top humus layer with intermediate tines
  • ideal consolidation by toothed ring packer roller
  • hydraulic depth adjustment
  • very agile thanks to integrated chassis


  • significant reduction of weeds, e.g. thistles
  • subsoiler tines loosen, without mixing
  • promotes soil life and humus formation
  • increase in crop yields
  • no formation of a plough sole
  • replaces separate cultivator tillage
  • almost seed-ready soil thanks to 2-layer processing
  • lower traction and fuel consumption compared to traditional subsoilers
    Working width [m] Folding Weight [kg] Power requirement [hp] Tines
    3.5 Compact folding
    6,100 210 7
    4.5 Compact folding 6,700 270 9
    5.5 Compact folding 7,200 350 11
    6.5 Central folding 12,000 400 13
    7.5 Central folding 13,200 500 15
    8.5 Central folding 14,600 550 17


    • Heavy V-frame
    • 80 cm high tines with vertical Hardox blades
    • Interchangeable booted points with Hardox plates
    • Shear bolts with predetermined breaking grooves
    • Heavy-duty cage roller Ø 58 cm
    • Double-sealed special ball bearings
    • Hydraulic depth adjustment of rollers with aluminium hooks
    • Hydraulic drawbar with aluminium hooks
    • Hydraulic chassis
    • Warning signs with lighting and flashing system
    • Complete frame made of steel ST 52 / S355
    • Height-adjustable spring tines
    • Toothed ring packer roller Ø 58 cm with scrapers
    • Straw harrow tines (12 mm)
    • Double-contact wheels in the front
    • Installation of small seed dispenser
    • Hydraulic locking hooks
    • Chassis with pneumatic brake
