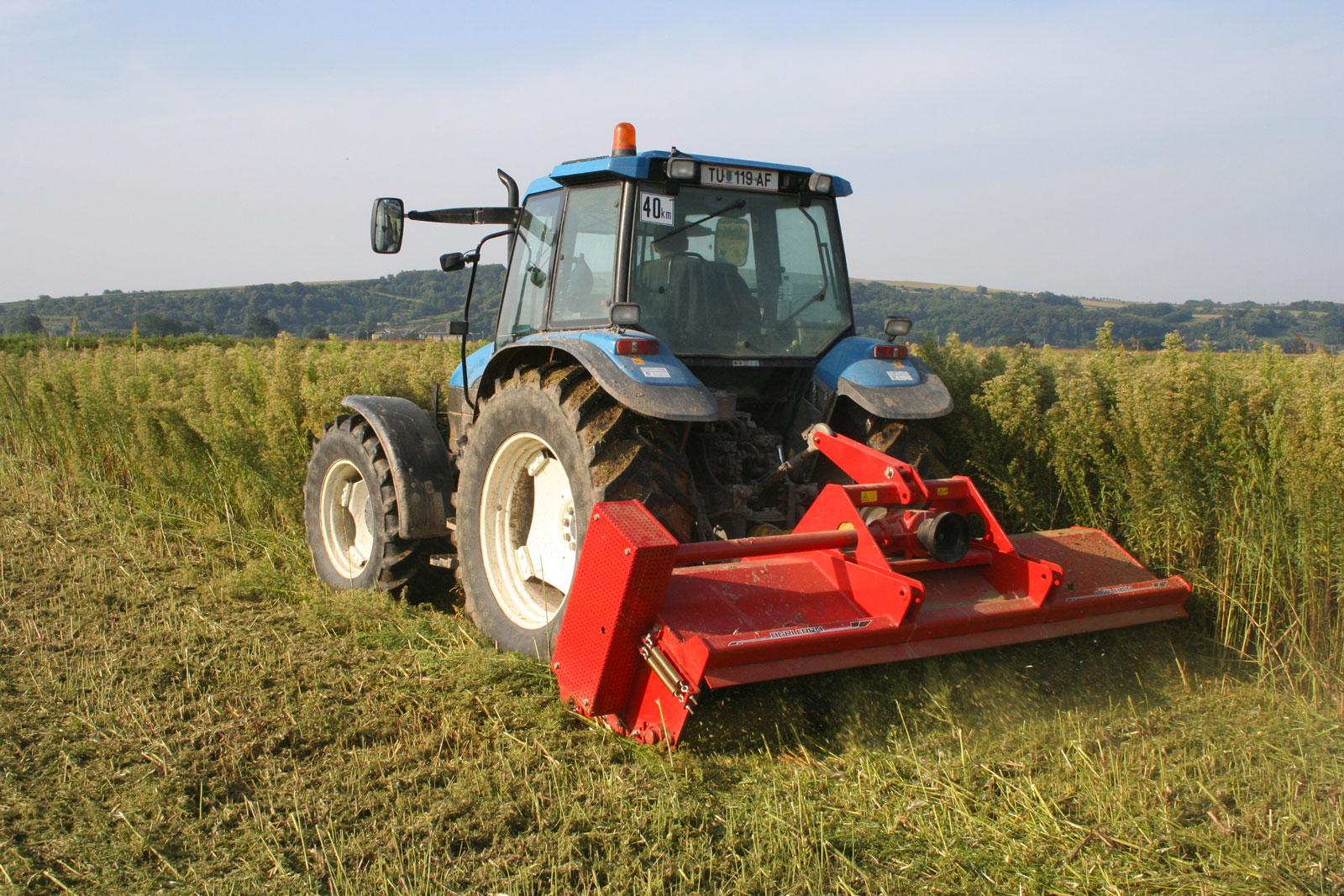

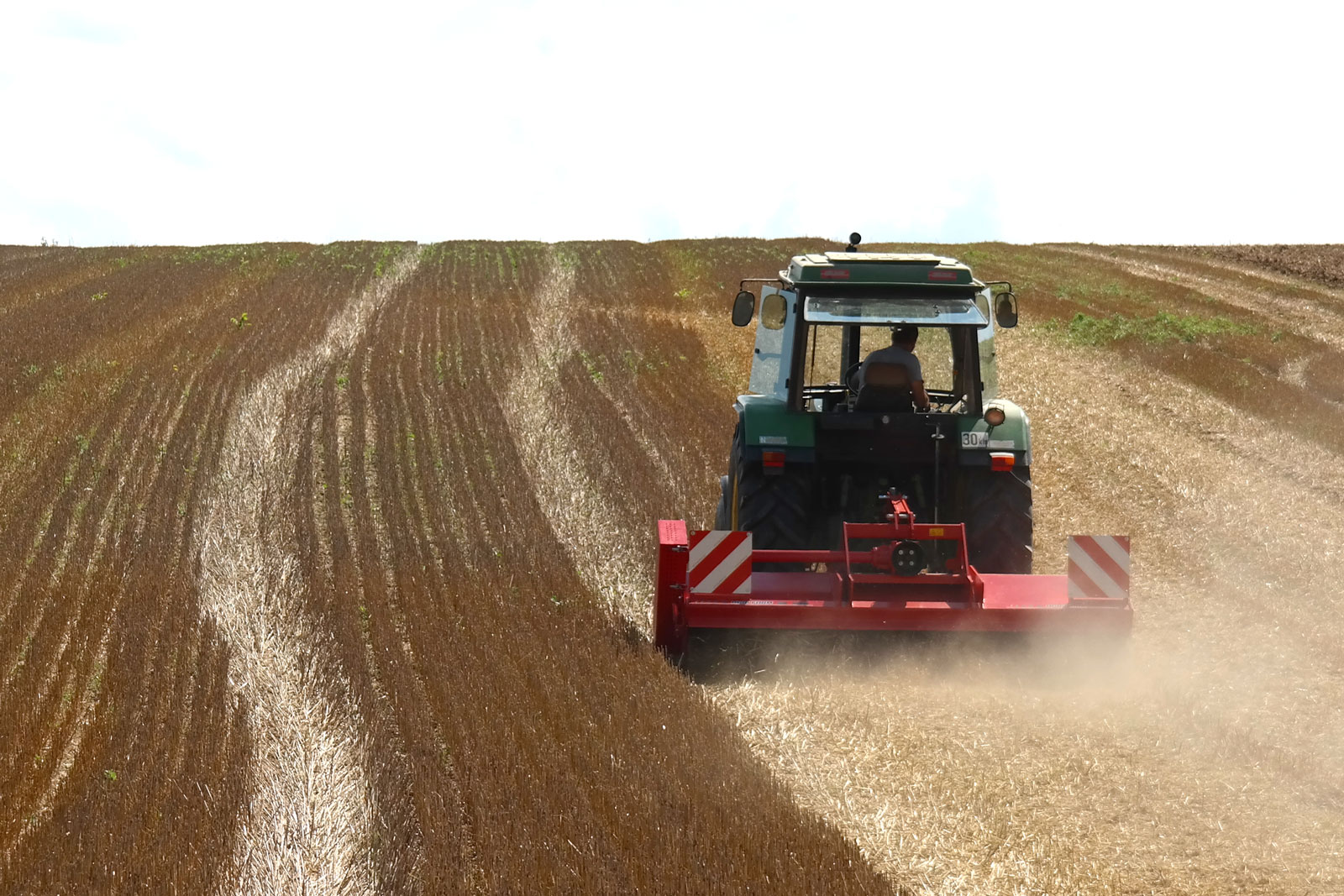

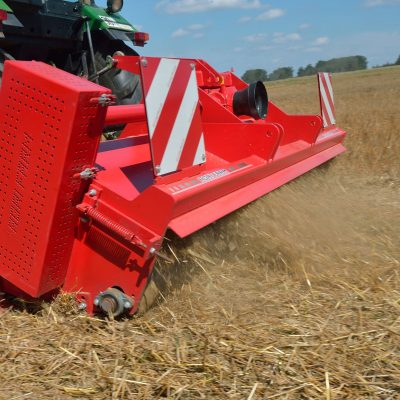

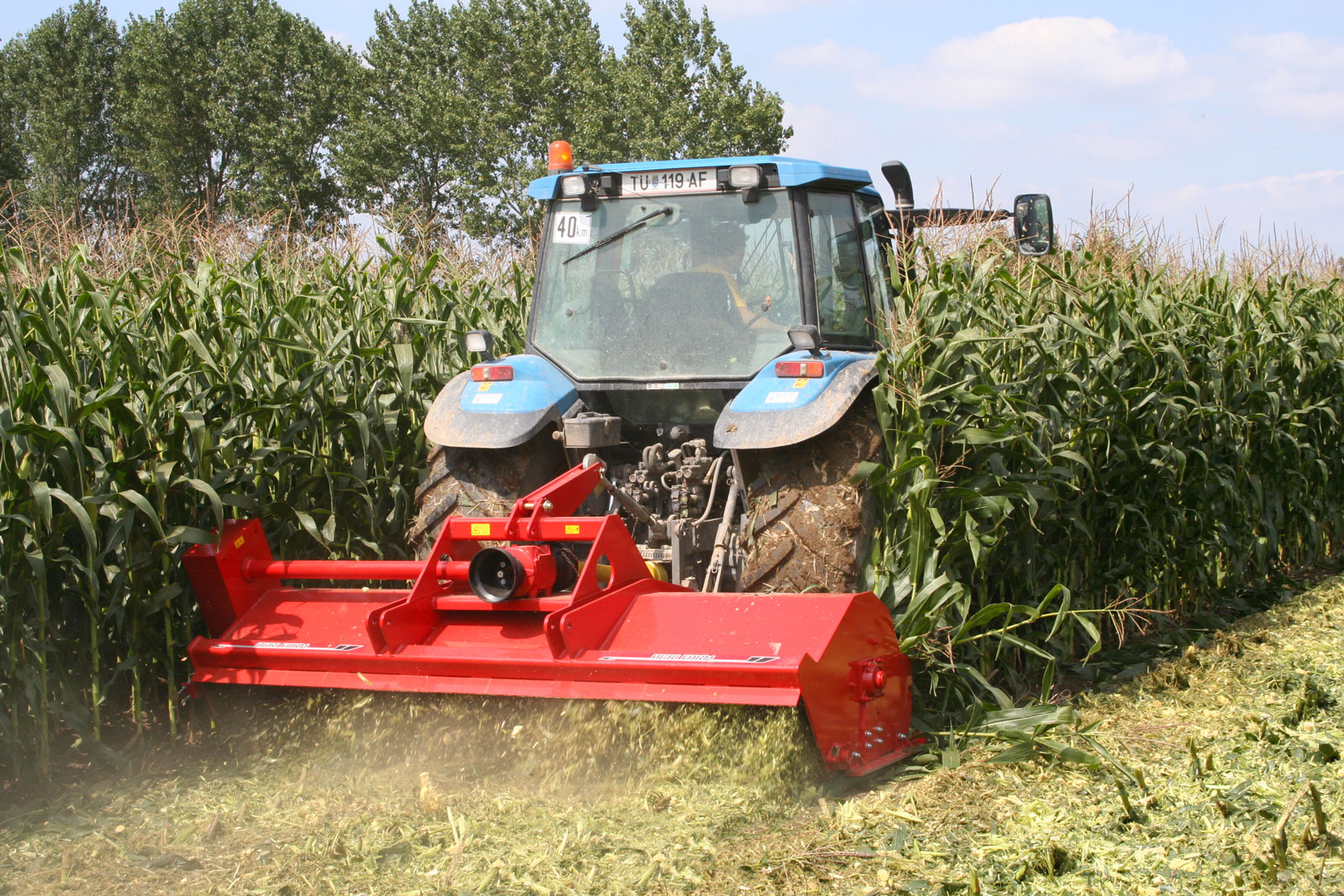

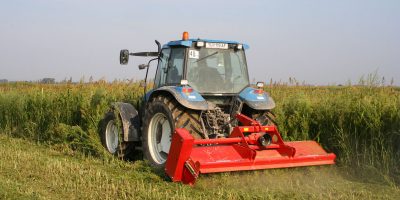

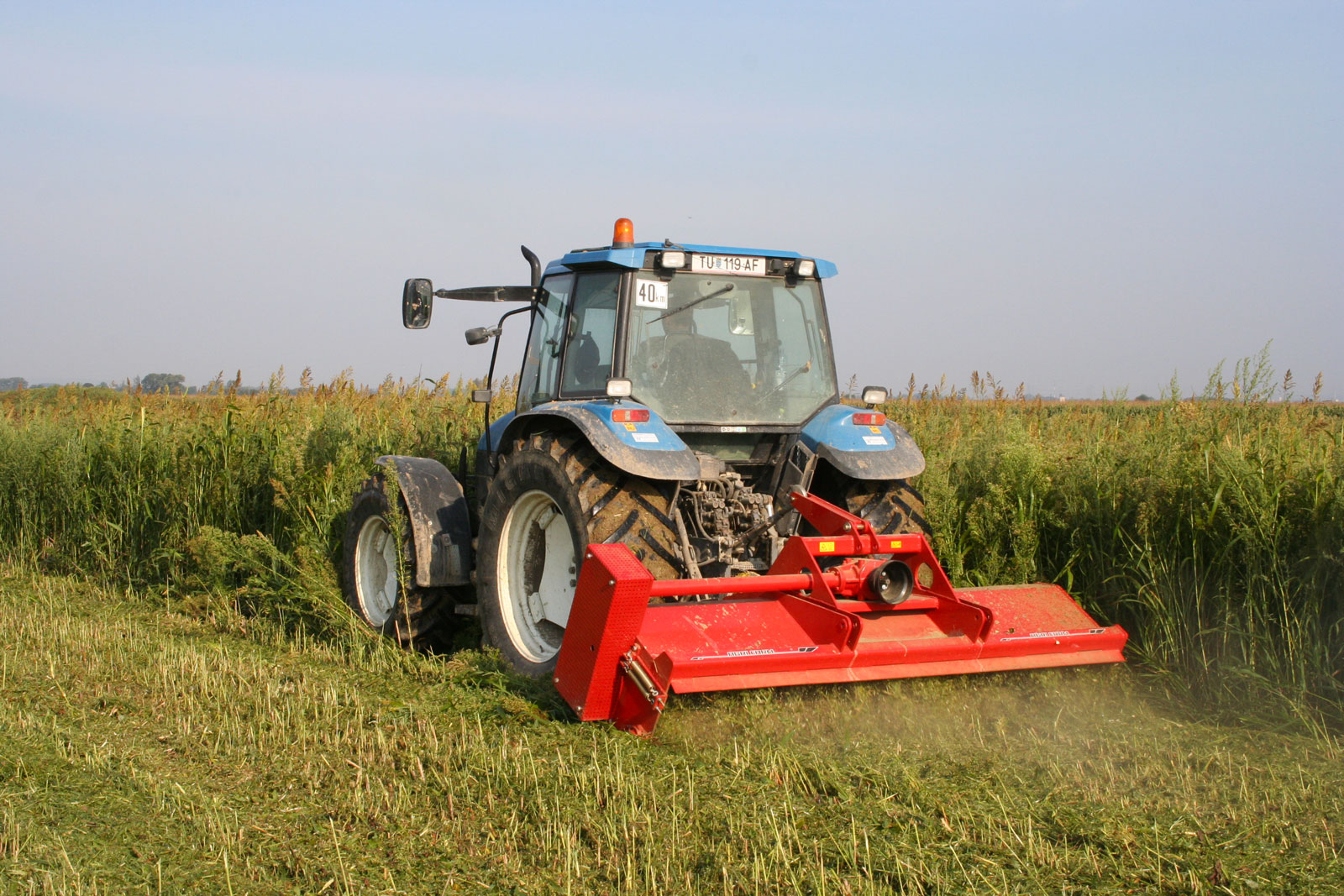

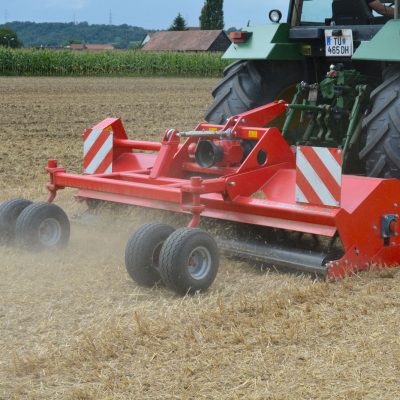

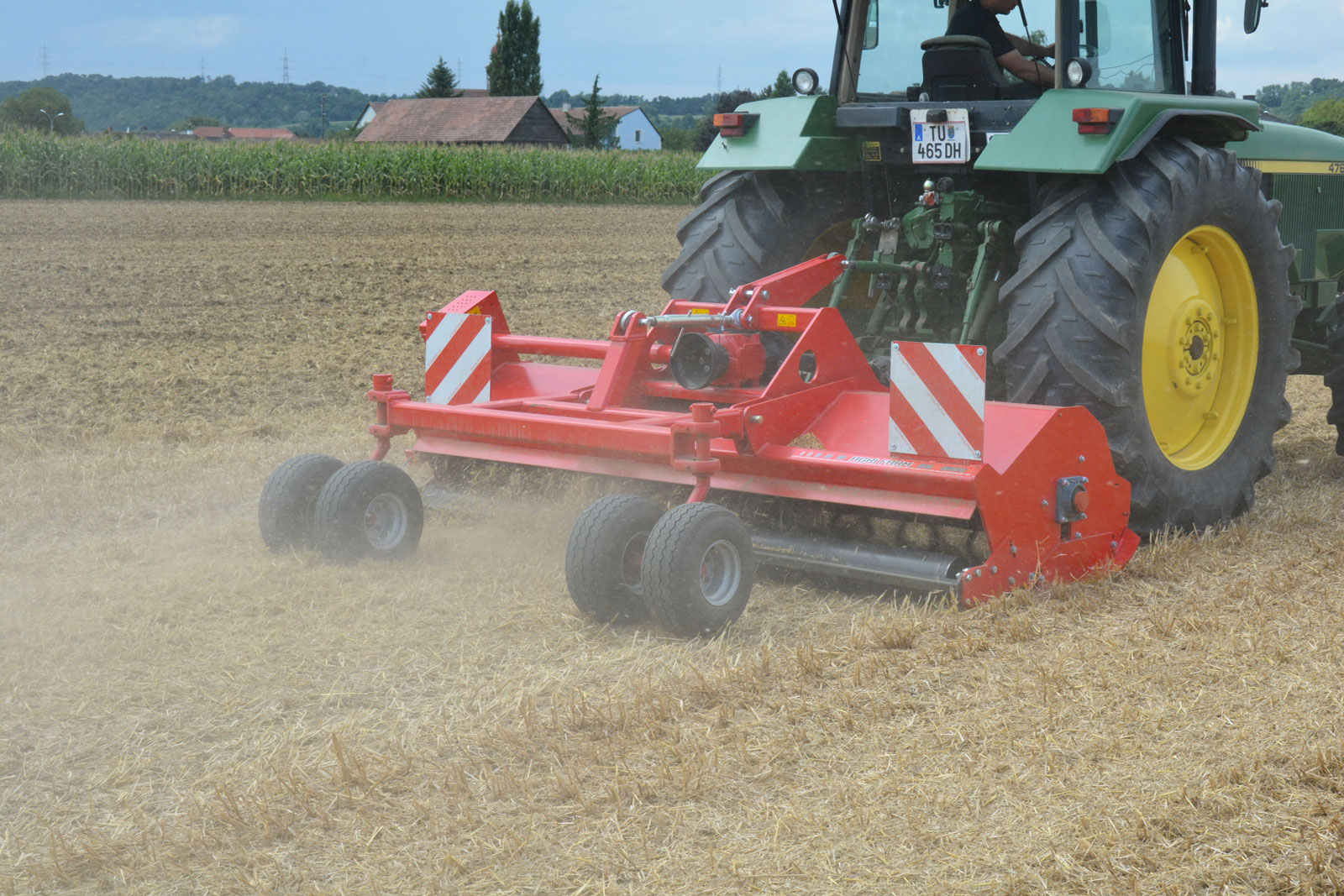

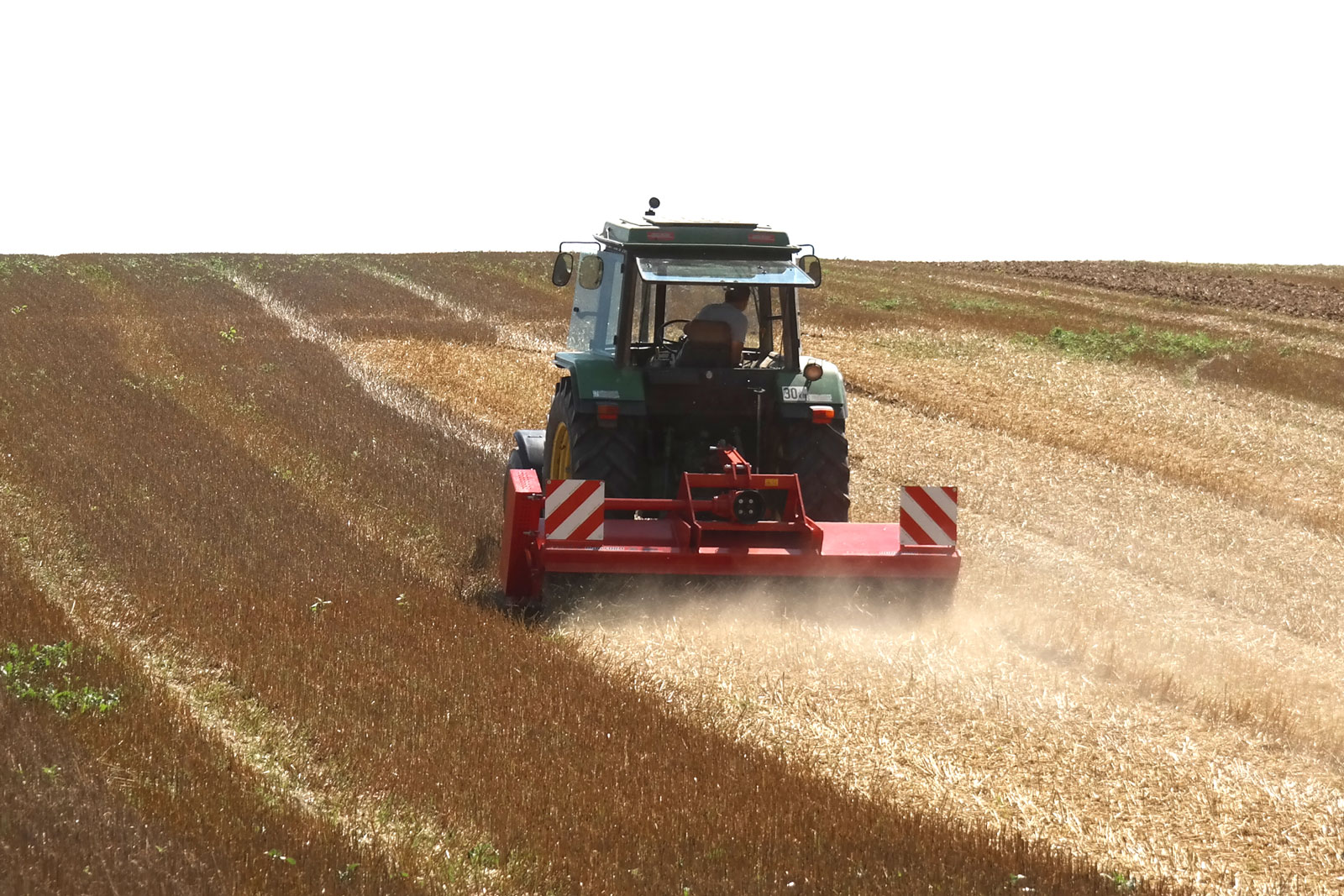

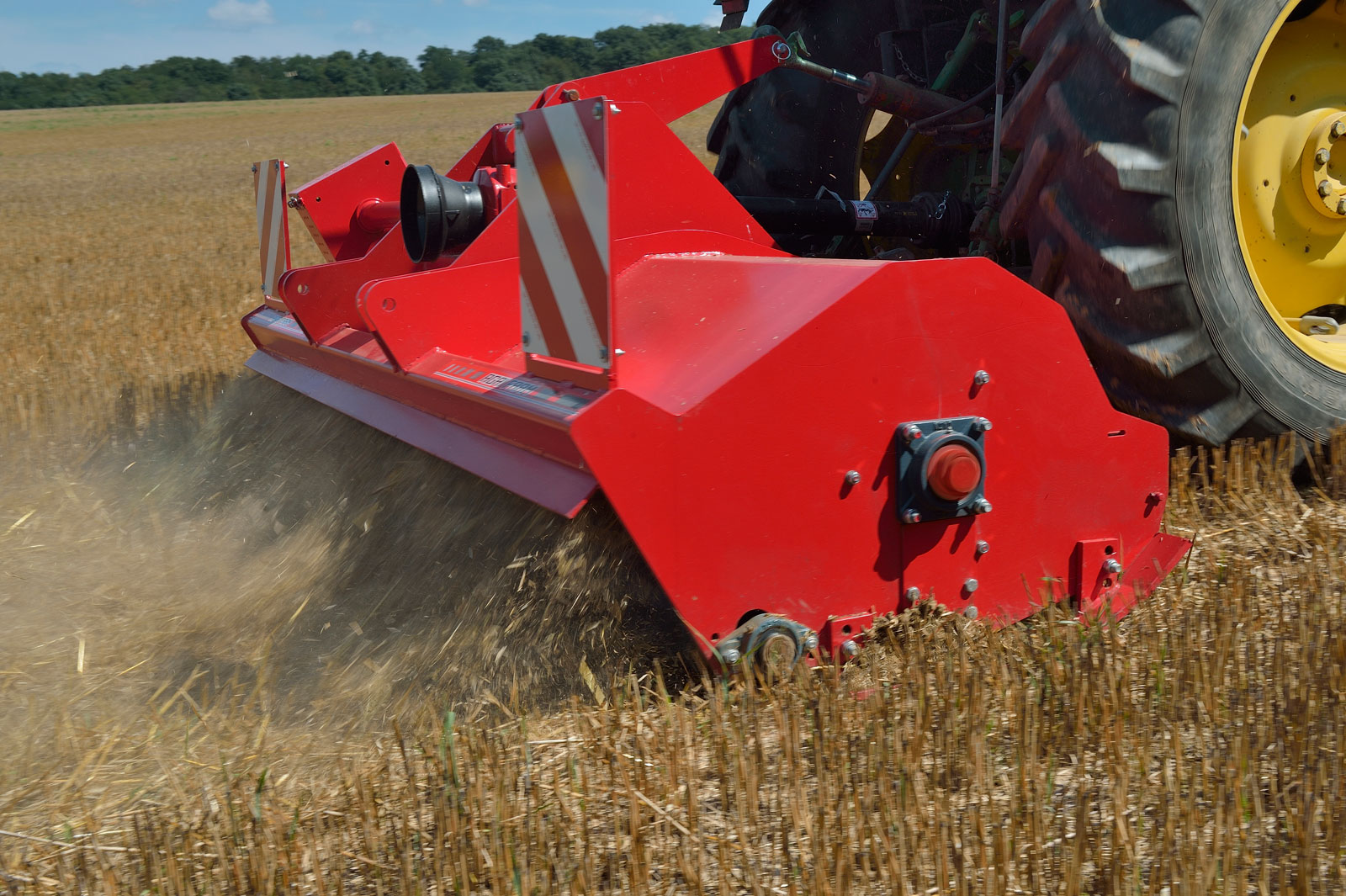

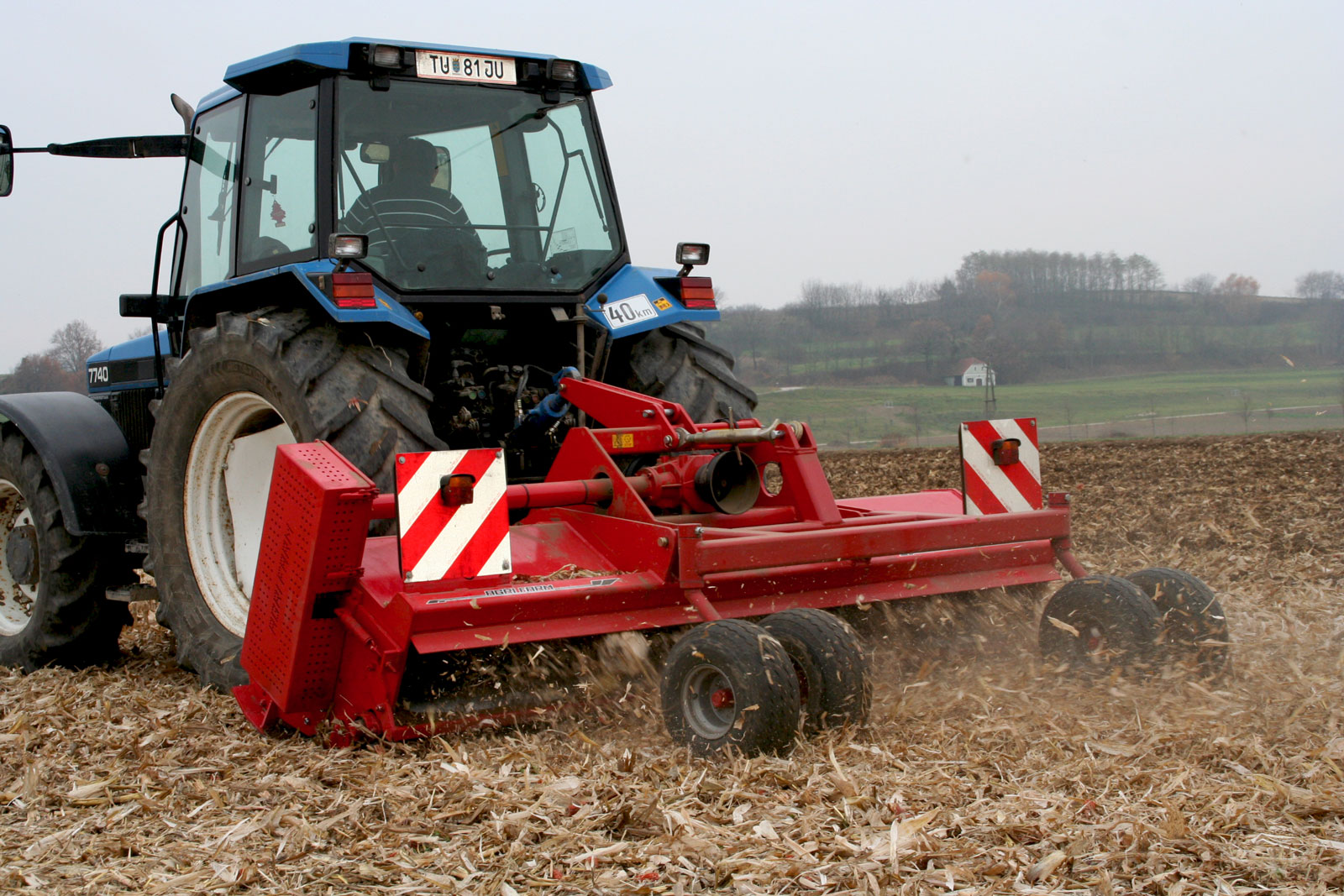

The extremely robust mulch shredder is used to crush and spread straw, beet leaves, potato haulm, grass and green manure.
Due to the extremely massive design of the rotor shaft and the housing, the device is particularly suitable for hard continuous use, even in large-scale farms.

The mulch shredder has been developed for high working speeds with low effort and therefore convinces with a large area performance.
The large rotor with high cutting speed is responsible for the strong suction and the very good cutting quality.
The heavy rotor shaft is perfectly balanced to guarantee smooth operation.
Narrow, long universal blades and a Hardox counter-edge provide fine and optimal shredding performance.

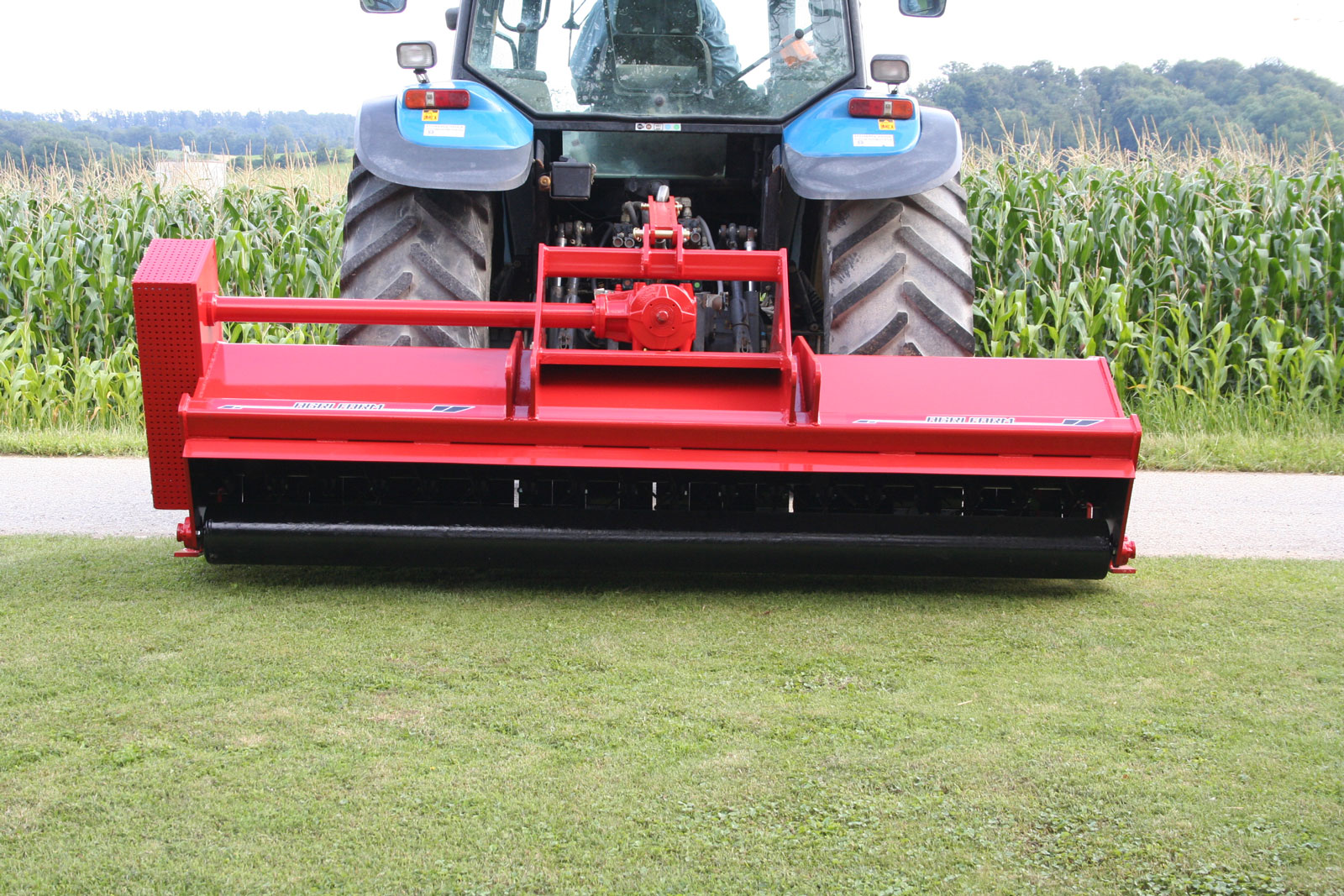

A support roller and additional skids ensure the exact ground clearance.



Application


  • shredding straw and green manure

Features


  • extremely solid rotor and robust housing
  • high cutting speed
  • smooth running
  • for front and rear attachment
  • automatic V-belt tensioner



Advantages


  • extremely long service life
  • accurate ground clearance thanks to adjustable supporting roller
  • even distribution of shredded mass
  • great area performance
  • very fine chopping work due to high cutting speed



    Working width [m] 3.0
    Rotor diameter [mm] 660
    Cutting speed [km/h] / [m/s] 250 / 70
    Housing sheet thickness [mm]
    6
    Side plate thickness [mm] 15
    Number of knives
    68
    Number of counterknives
    2 (one of Hardox)
    Height adjustment Supporting roller and skids
    Number of support wheels (by arrangement) 4 wheels (360° rotatable)
    Automatic V-belt tensioner Standard
    Front and rear attachment Standard
    Drive shaft Standard
    Power requirement [hp] ab 70 bis 130
    Weight [kg] 1,280



    • Complete frame made of steel ST 52 / S355

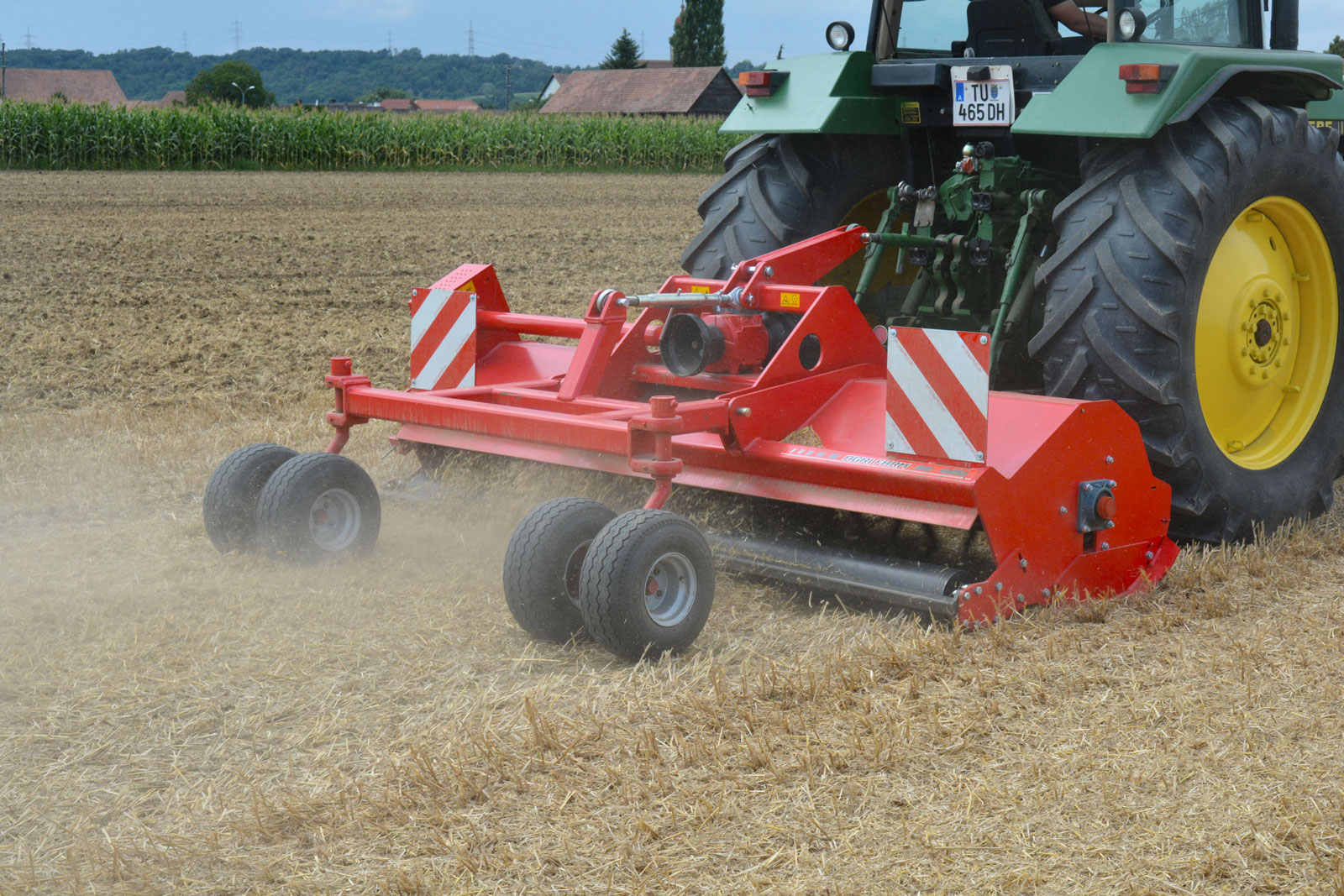

    • Freely rotatable double support wheels
    • Warning signs with lighting and flashing system
